circuito 1

An interactive resistor and power source circuit built in the DCACLab online simulator by Brandon Puchaicela. Open it to run the simulation and measure it.

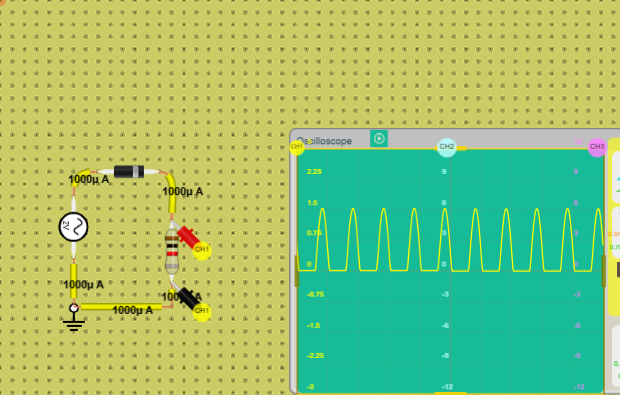

Preview of circuito 1
Open in the lab Embed Run the circuit right here. To edit it in the full lab, sign in; free accounts have a time limit there.

Ensina com circuitos?

Crie uma turma, passe um circuito para os alunos montarem e revise o que eles entregam. Experimente grátis com uma turma e até 5 alunos.

Experimente a demo de turma grátis

What's inside

  • 1× Power Source
  • 4× Resistor (996 mΩ, 994 mΩ, 997 mΩ, 992 mΩ)

Tags

About

By Brandon Puchaicela
Saved December 09, 2024 · updated January 15, 2026
617 views
Page: dcaclab.com/circuits/78689-circuito-1-706

Embed this circuit

<iframe src="https://dcaclab.com/experiments/78689-circuito-1-706/iframe" width="560" height="410" frameborder="0"></iframe>

Cite: Puchaicela, B. (2024). circuito 1. DCACLab. https://dcaclab.com/circuits/78689-circuito-1-706
