A Comprehensive Study on Short Circuit Detection Feature in DCAClab

Short Circuit Detection

Short circuit detection refers to the process of identifying when an unintended low-resistance connection occurs in an electronics or electrical circuit, typically between two points where it shouldn’t exist. This abnormal connection causes a large current to flow, potentially leading to damage, overheating, or even fire. Detecting short circuits is crucial for protecting electrical components, systems, and personnel.

Short Circuit Detection in DCAClab

In DCAClab Circuit SimulatorReal Time Short Circuit Detection – a feature that sets a new industry standard in educational and professional circuit simulation tools. DCAClab is now among the first in its category to intelligently detect and respond to short circuit conditions in real time, ensuring both a realistic simulation experience and a deeper understanding of circuit behavior.

Why Short Circuit Detection Matters

In real-life electronics and electrical systems, short circuits are dangerous faults that can damage components, overheat wires, or even start fires. In a virtual lab environment, it is crucial that students and professionals learn to recognize and avoid these conditions. Our advanced short circuit detection brings real-world consequences into the simulator, enhancing both safety awareness and design accuracy.

How DCAClab Detects Short Circuits Intelligently

DCAClab’s short circuit detection engine is built using advanced algorithms that analyze current paths, voltage drops, and impedance behavior in real-time. Here’s how it works in different scenarios:

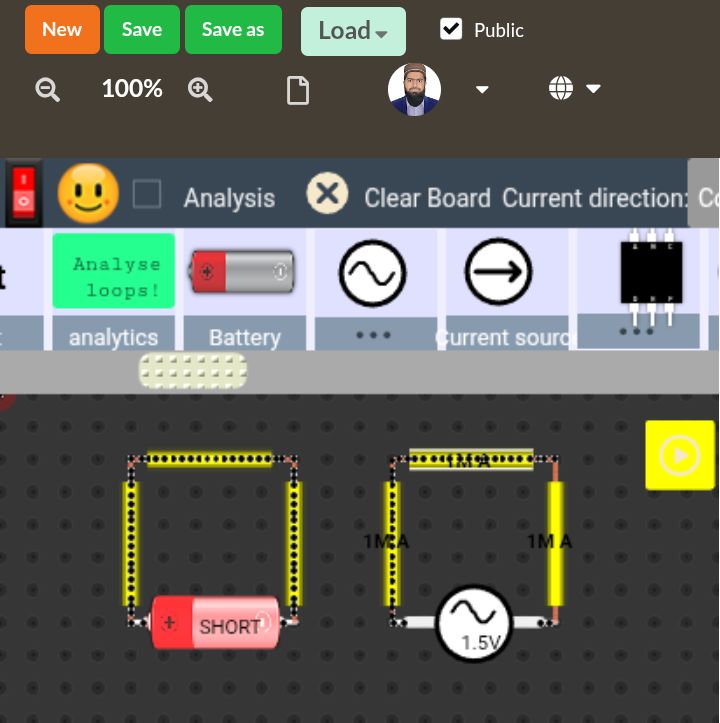

1. Short Circuit Between Power Supply Terminals

If we directly connect the positive (+) and negative (−) terminals of a voltage or current source using a single wire with negligible resistance, the simulator will immediately detect a short circuit.

What happens in DCAClab:

  • A visual warning is triggered
  • A Red colored indicator

This helps users understand why a direct connection across the source terminals is dangerous, mirroring what would happen in a physical lab environment.

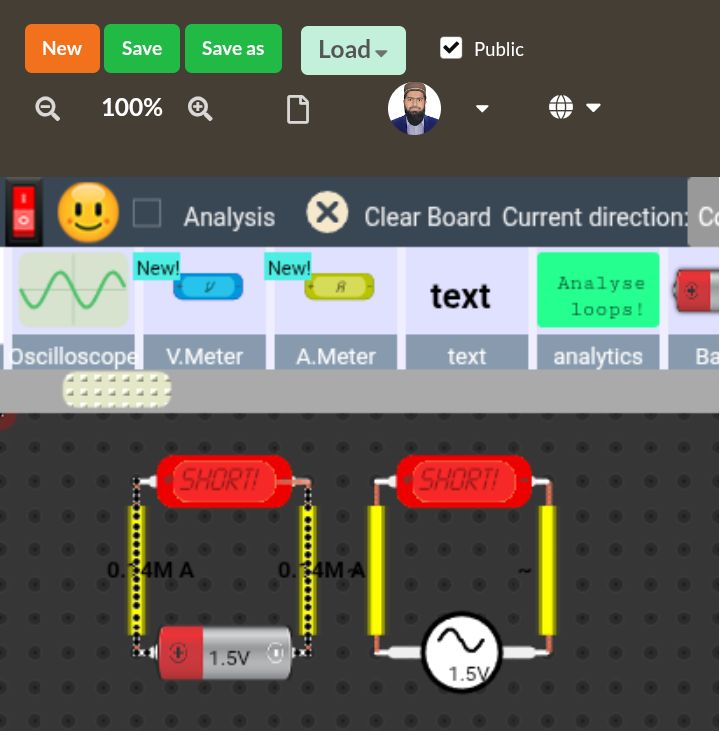

2. Short Circuit Through Incorrect Ammeter Usage

A common mistake in circuits is placing an ammeter in parallel with a voltage source or component. Since an ideal ammeter has nearly zero resistance, this creates a low-resistance path, leading to a potential short circuit.

DCAClab’s response:

  • Detects when the ammeter is incorrectly placed
  • Highlights the short-circuit current path
  • Warns the user and provides correction advice

This ensures users not only fix the circuit but also learn proper instrumentation practices.

3.Short Circuit via Low-Impedance Reactive Components

In AC circuits, components like capacitors and inductors can behave as very low impedance paths at certain frequencies, especially when:

  • Capacitors act like a wire at high frequency
  • Inductors act like a wire at low frequency

DCAClab now simulates this frequency-dependent behavior. If the impedance of a component drops too low due to circuit configuration or signal characteristics, it triggers a dynamic short circuit warning.

High Frequency in Capacitor

Low Frequency in Inductor

Educational Value:

  • Users understand the frequency behavior of reactance
  • See real-time impedance graphs and explanations
  • Gain insight into concepts like resonance and filter failure

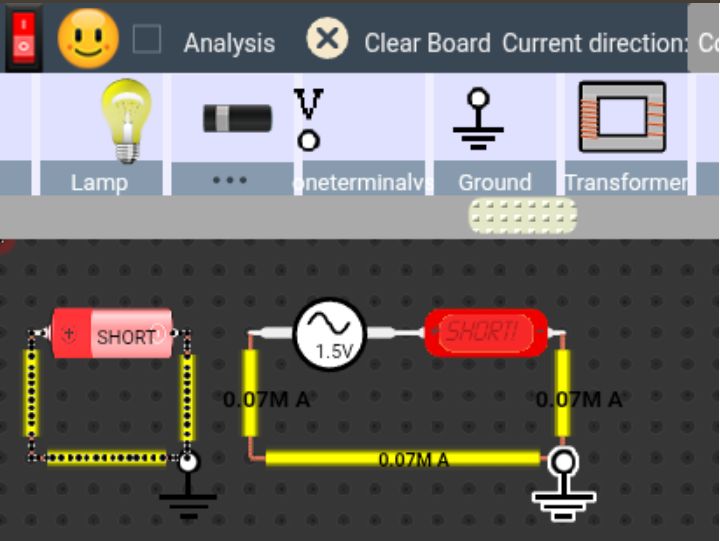

4. Incorrect Grounding and Loop Creation

If a user creates an unintentional loop between power terminals or ground points with no load or resistance, the simulation recognizes this as a zero-impedance path and notifies the user of the short circuit condition.

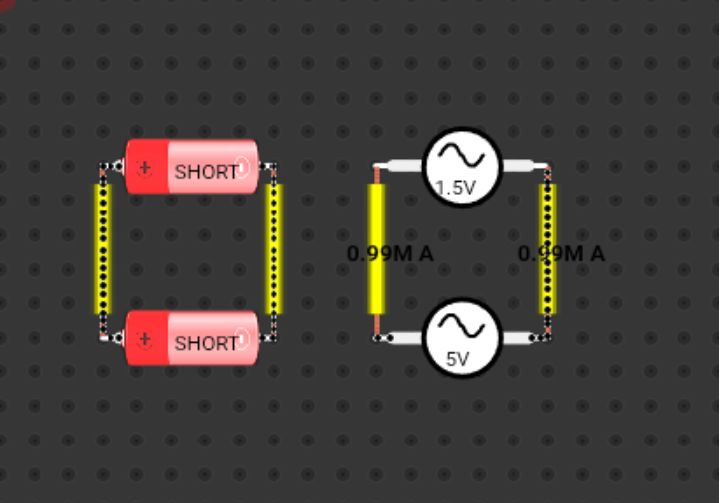

5. Parallel Voltage Sources

Short Circuit is occured when two voltage sources are connected in parallel with different voltages. To show AC short circuit, DMM or Ammeter is required in DCAClab .

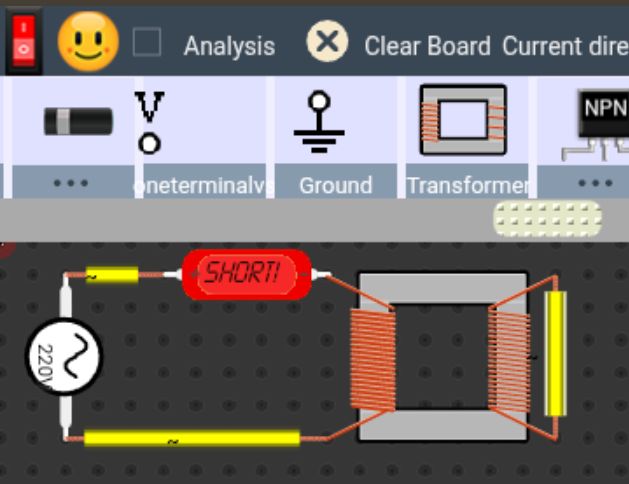

6. Secondary Coil Shorted Directly in Transformer

Secondary coil short

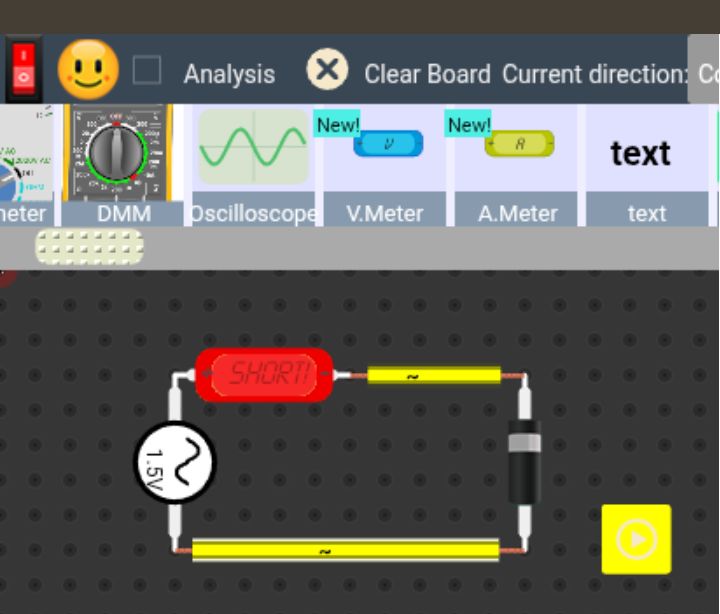

7. Diode or Diode Bridge Shorted in AC Source

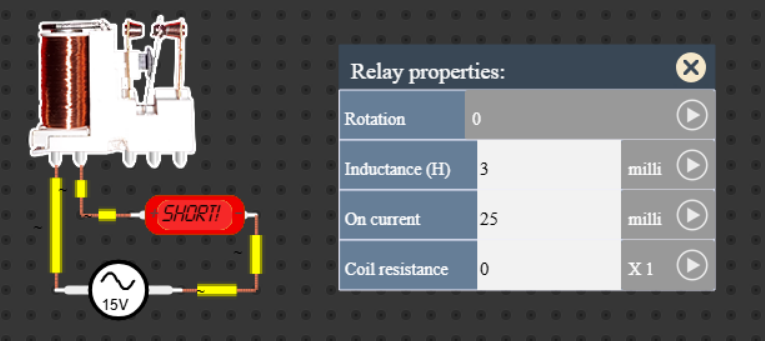

8. Relay Short Circuit for 0 resistance of coil

In the relay, the coil has a certain resistance that limits the current flow. By setting the resistance to 0, there is no resistance to oppose the flow of current. As a result, the current flows uncontrollably, leading to an excessive flow of current through the circuit. This is essentially a short circuit condition.

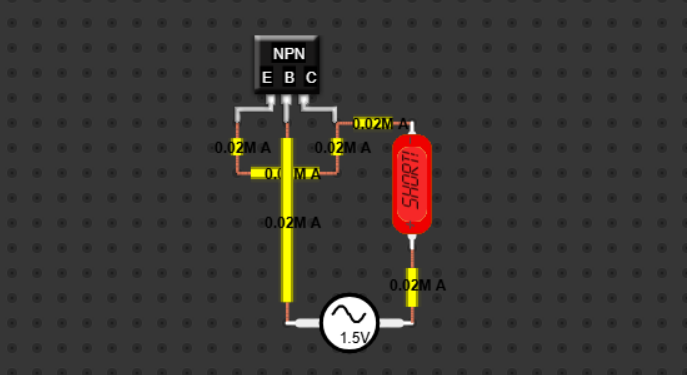

9. Emmiter and Collector directly short in Transistor

collector-emitter short in NPN Transistor

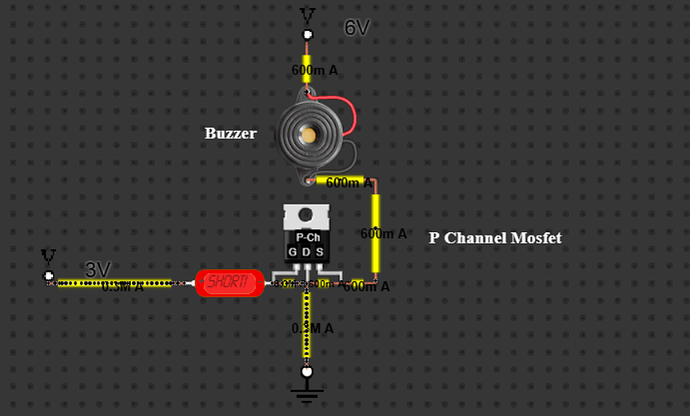

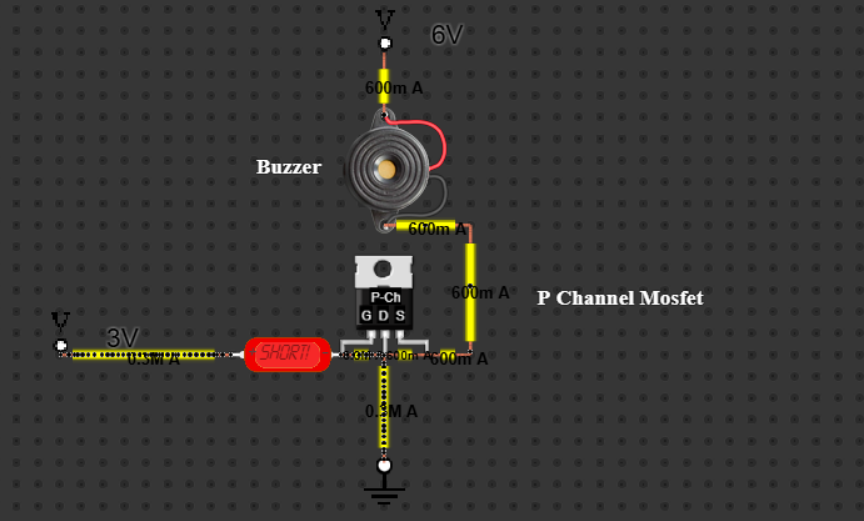

10. Gate, Source and Drain Direcly Short in P and N Channel Mosfet

11. Opamp Short Circuit

Opamp Short Circuit

Short Circuit Types – Summary Table

Category Example Triggered in DCAClab
Power Supply Short Wire directly between + and − of a voltage source Yes
Ammeter Misuse Ammeter placed in parallel with resistor or voltage source Yes
Capacitor Reactance (AC) Capacitor in high-frequency AC circuit behaving as short Yes
Inductor Reactance (AC) Inductor in low-frequency AC circuit behaving as short Yes
Ground Loop Multiple grounds directly connected without load Yes
Infinite Loop Path Wire loop with no resistance or load Yes
Internal Component Fault Shorted transistor (e.g., collector-emitter) Yes
Parallel Voltage Sources Two voltage sources connected in parallel with different voltages Yes
Op-Amp Misconnection Output shorted to input or power rails or direct short Yes
Transformer Short Secondary coil shorted directly Yes
Capacitor Charged & Shorted Charged capacitor terminals shorted suddenly Yes
Miswired Bridge Rectifier AC input shorted across DC output terminals Yes
Electrolytic Capacitor Error Polarity reversed on polarized capacitor Yes
Relay Short Circuit When set up 0 resistance of coil Yes

Key Features of DCAClab’s Short Circuit Detection

  • Real-time monitoring of current paths and node voltages
  • Intelligent analysis of impedance across all components
  • Frequency-aware behavior for AC analysis
  • Realistic modeling of ammeter and voltmeter internal resistance
  • Friendly educational messages and correction suggestions
  • Helps prevent component damage in simulation
  • Visually highlights short circuit paths for easy troubleshooting

Built for Learners, Loved by Professionals

DCAClab isn’t just about circuit building — it’s about learning and mastering electrical and electronic design. This new short circuit detection system encourages users to:

  • Think critically about their circuit layout
  • Understand electrical safety principles
  • Learn the real-world behavior of components and instruments
  • Develop diagnostic skills useful for engineering careers.

If you want to learn about Understanding Impedance in Capacitors and Inductors: The Role of Frequency. You can visit it and can learn it.
