Introduction:
In AC (alternating current) circuits, impedance is the opposition that a component offers to the flow of alternating current. Two fundamental components in AC circuits—capacitors and inductors—react differently to changes in frequency. Understanding these differences is crucial in designing and analyzing electrical circuits.
Impedance Basics:
Impedance, represented as Z, is measured in ohms and consists of resistance and reactance. For capacitors and inductors, the impedance is purely reactive, which means it does not dissipate energy as heat but stores and releases energy. The way capacitors and inductors behave with frequency is opposite, and this difference is critical to circuit design.
Capacitor Impedance:
The impedance of a capacitor is inversely proportional to the frequency. The formula for capacitive impedance is:
Z = 1 / (2 * pi * f * C)
Where:
- Z = Capacitive impedance in ohms
- pi = 3.14159 (approximately)
- f = Frequency in hertz (Hz)
- C = Capacitance in farads
As frequency increases, the impedance of a capacitor decreases. At higher frequencies, the capacitor charges and discharges more quickly, allowing more current to pass through. This means it offers less opposition to AC at high frequencies.

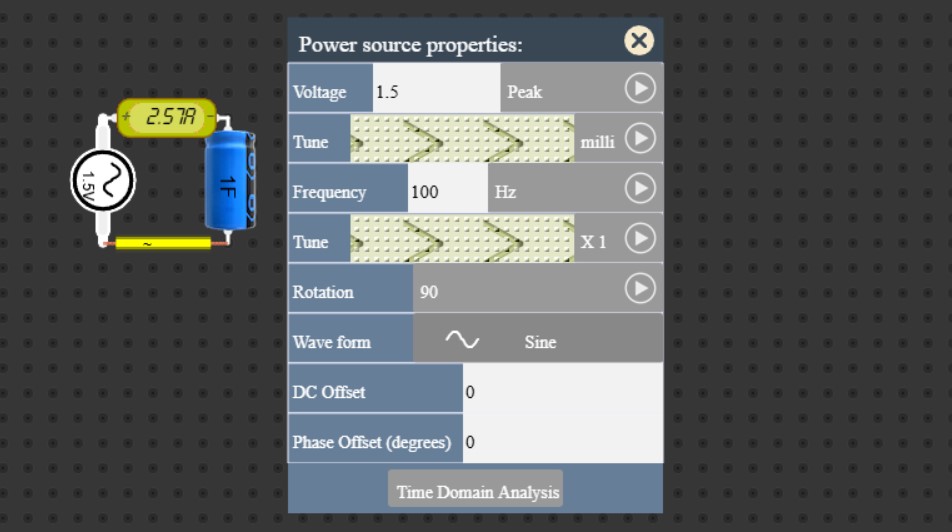

Low Frequency in Capacitor:

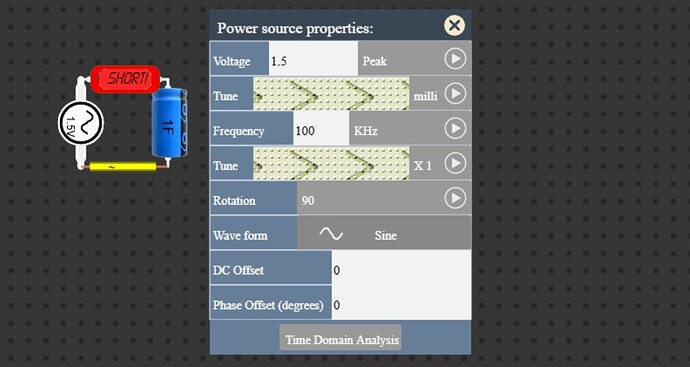

High Frequency in Capacitor
In summary:
- At low frequency, capacitor impedance is high. It acts like an open circuit.
- At high frequency, capacitor impedance is low. It acts like a short circuit.
Inductor Impedance:
The impedance of an inductor is directly proportional to the frequency. The formula for inductive impedance is:
Z = 2 * pi * f * L
Where:
- Z = Inductive impedance in ohms
- pi = 3.14159 (approximately)
- f = Frequency in hertz (Hz)
- L = Inductance in henrys
As frequency increases, the impedance of an inductor increases. This is because inductors resist changes in current. At higher frequencies, current changes more rapidly, so the inductor generates a stronger opposing voltage, increasing its opposition to current.

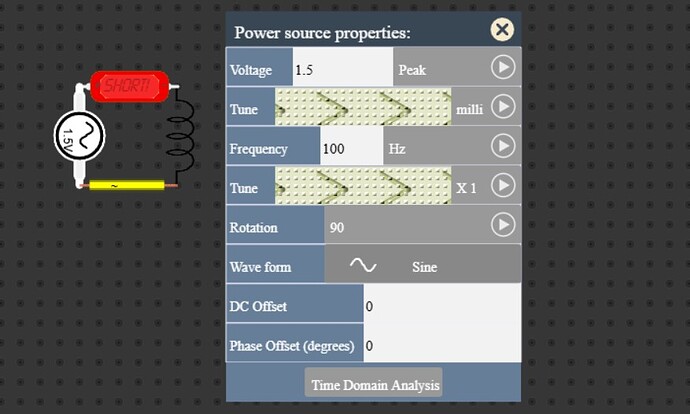

Low Frequency in Inductor:

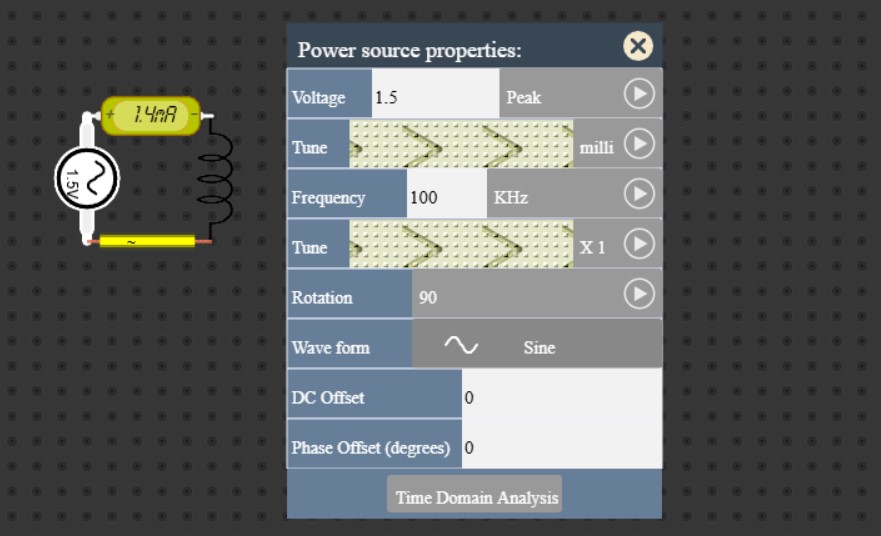

High Frequency in Inductor:
In summary:
- At low frequency, inductor impedance is low. It acts like a short circuit.
- At high frequency, inductor impedance is high. It acts like an open circuit.
Why the Difference:
Capacitors store energy in an electric field, and as the frequency increases, they can respond more quickly, reducing their impedance. Inductors store energy in a magnetic field, and as the frequency increases, they resist faster changes in current more strongly, increasing their impedance. This difference is due to the way each component interacts with time-varying currents and voltages.
Summary Table:
| Component | Impedance Formula | Impedance at Low Frequency | Impedance at High Frequency |
|---|---|---|---|
| Capacitor | Z = 1 / (2 * pi * f * C) | High (open circuit) | Low (short circuit) |
| Inductor | Z = 2 * pi * f * L | Low (short circuit) | High (open circuit) |
Conclusion:
Understanding how capacitors and inductors respond to frequency is essential in AC circuit analysis and filter design. Capacitors pass high-frequency signals and block low-frequency ones, while inductors block high-frequency signals and pass low-frequency ones. This fundamental behavior is used in designing filters, oscillators, signal processors, and more.
